5 Intensified Cyanide Leaching Methods You Need to Know

2021-03-25 Views:5022

Warm Tip: If you want to know more information, like quotation, products, solutions, etc., please Click here ,and contact us online.

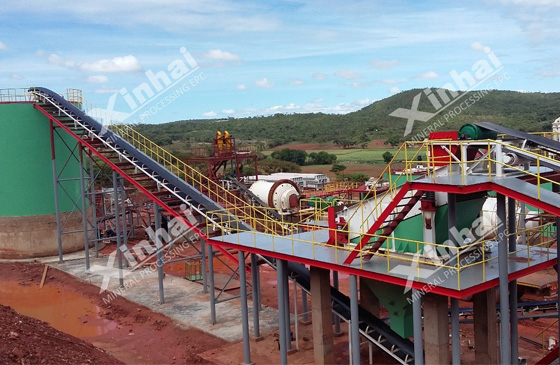

Newly-built gold cyanide plant

Cyanide gold leaching is a process of extracting gold with cyanide as the leaching reagent, which is the most important gold extraction method because of its mature process, high recovery rate, low cost, etc. However, there are still some aspects to be improved, such as improving the cyanide gold extraction process, shortening the cyanide leaching time, decreasing the cyanide consumption. Therefore the intensified cyanide leaching is particularly important in improving the cyanide leaching effect.

Intensified cyanidation is mainly use physical methods to improve the physical and chemical conditions of cyanide leaching and increase the leaching speed so as to increase the recovery rate of gold ore. The main methods of intensive cyanidation are:

  • Oxidant Intensified Cyanide Leaching
  • Heavy Metal Intensified Cyanide Leaching
  • Oxygen-rich Intensified Cyanide Leaching
  • Pressure Intensified Cyanide Leaching
  • Ultrasonic Intensified Cyanide Leaching

Let’s drive in!

#1 Oxidant Intensified Cyanide Leaching

Research and production practice has proved that peroxygen reagents such as H2O2, Na2O2, CaO2, BaO2, and persulfate have obvious effects on strengthening gold leaching. This is because they can not only increase the content of dissolved oxygen in the slurry, also have the advantages of high utilization of active oxygen.

Compared with the traditional cyanidation method for gold extraction, the peroxide-assisted gold extraction process has the following characteristics and advantages:

  1. 1. It can increase the content of dissolved oxygen in the leaching pulp and accelerate the diffusion rate of dissolved oxygen. It takes only one-fifth of the time of the traditional aeration method to reach a higher oxygen concentration.
  2. 2. The peroxide-assisted leaching of gold is fast and significantly reduces the leaching time.
  3. 3. Reduce the consumption of cyanide.
  4. 4. Easy to promote the application, easy to operate and manage, safe and reliable.
  5. 5. It is a feasible way to innovate, renovate and expand the existing cyanide plant with a small investment and only a reagent feeder.

#2 Heavy Metal Intensified Cyanide Leaching

Lead salt, mercury salt, and bismuth salt can all be used as cyanidation accelerants. These heavy metal salt accelerators accelerate the speed of gold leaching. The principle is to form a local galvanic cell between gold and heavy metals such as lead or mercury. The addition of lead salts and other accelerators to the cyanide slurry has been applied in many plants at home and abroad. For example, in some cyanide plants in Canada, by adding Pb(NO3)2 and maintaining a good concentration of dissolved oxygen in the cyanide circuit, thus overcoming the adverse effects of sulfide minerals on the cyanidation process. However, it should be pointed out that all cyanidation plants should control the amount of accelerators within a certain range according to the specific conditions of gold ore.

#3 Oxygen-rich Intensified Cyanide Leaching

The oxygen-enrich intensified gold leaching process is also known as the CIG oxygenation process, that is, pure oxygen is filled into the leaching tank to replace the traditional process of filling compressed air. This process can increase the dissolved oxygen content in the slurry and therefore accelerate the leaching speed, improve the leaching rate of gold and the processing capacity. Oxygen is fed into the leaching tank from below the agitator and dissolved in the slurry. The concentration of oxygen in the slurry can be maintained at about 20×10-6.

When[CN]/[O2]>6, the dissolution reaction of gold is controlled by the diffusion of oxygen, and when[CN]/[O2]<6, the dissolution reaction of gold is controlled by the diffusion of CN-. Most cyanide plants operate under the condition of [CN]/[O2]>6, so that the dissolution of gold mainly depends on the concentration of dissolved oxygen. The relationship between gold dissolution rate and oxygen concentration is shown in Table 1. The rate of gold leaching with oxygen is 5 times faster than that with air. If the leaching capacity is the same, the volume of the leaching tank can be greatly reduced.

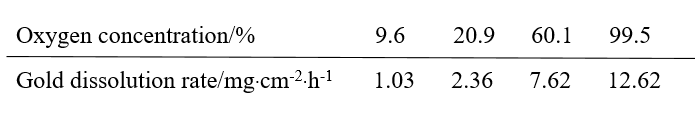

Effect of oxygen concentration on the dissolution rate of gold

Table 1 Effect of oxygen concentration on the dissolution rate of gold

The use of pure oxygen leaching can reduce the consumption of cyanide (5%~85%), the main reason are:

  1. 1. The concentration of CO2 in the slurry is reduced. Thereby reducing the consumption of cyanide by CO2;
  2. 2. Due to the use of pure oxygen, the leaching speed is greatly accelerated, thereby eliminating the effect of side reactions that consume cyanide;
  3. 3. Pure oxygen oxidizes some cyanide-consuming substances.

#4 Pressure Intensified Cyanide Leaching

Pressure cyanide leaching is a process in which the cyanidation process is realized in a pressure vessel, and the reaction pressure is increased to strengthen the cyanidation process. The initial research focused on the extraction of gold from refractory gold ore. When the air pressure is 2×105Pa, the dissolution rate of gold is 10-20 times that under normal pressure, realizing the so-called “flash cyanidation”. This means that the efficiency of cyanide leaching is improved.

#5 Ultrasonic Intensified Cyanide Leaching

Ultrasonic intensified leaching method (PUL) refers to the introduction of ultrasonic during the leaching process. Ultrasonic can play an enhanced leaching effect, mainly due to the formation of cavitation zone in the liquid phase under the action of specific acoustic waves, so that the pressure reaches 101.3 MPa, temperature and time change rate of 109 k / s, and accompanied by a strong impact. The local erosion, destruction or removal of the solid surface affects the leaching of the film and the passivation film generated in the chemical reaction.

The main role of ultrasound in the cyanidation process can be summarized into the following items:

  1. 1. Clean the surface of gold particles and minerals;
  2. 2. Destroy the diffusion layer and weaken the diffusion barrier;
  3. 3. Break the air bubbles and increase the oxygen solubility constant;
  4. 4. Promote the development of cracks on the surface of the ore;
  5. 5. Improve the lubricity of solid surfaces.

To Wrap Up

The above are several methods on how to intensify the cyanide leaching effect of gold ore. Intensified gold cyanide leaching technology can effectively increase the cyano-gold reaction rate, increase the gold recovery rate and reduce the amount of sodium cyanide. For gold cyanidation, the methods used vary from one gold ore type to another. It is recommended to conduct beneficiation tests first, understand the nature and characteristics of the ore, and select the appropriate process flow with comprehensive consideration of the investment budget, in order to obtain the ideal separation index and economic benefits.

If you have other opinions or questions about intensified cyanide leaching, you can consult our online customer service or leave a message, we will contact you ASAP.
